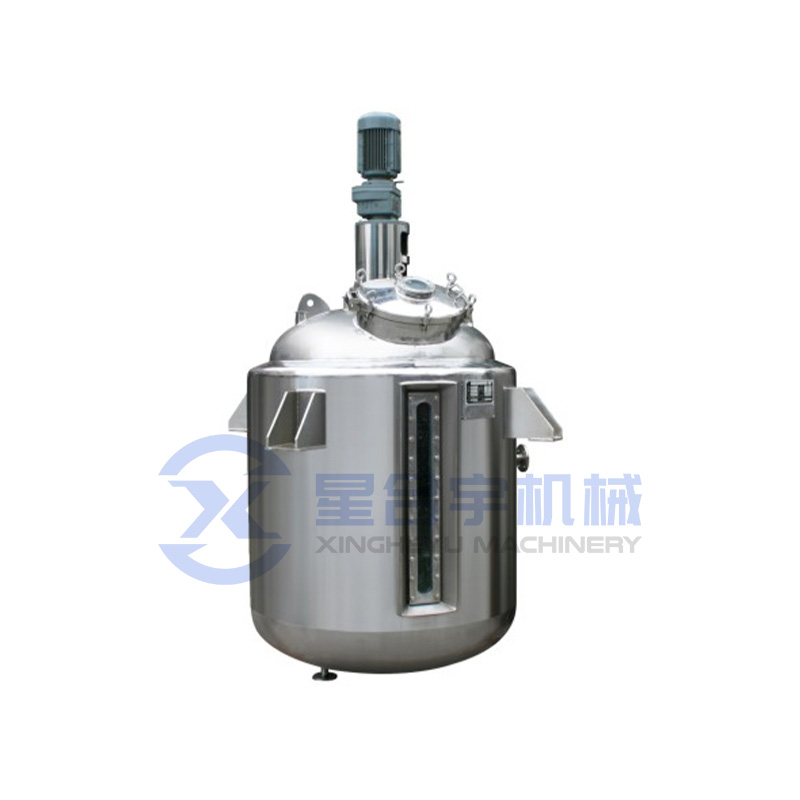

The equipment is made of 316L or 304 stainless steel, the inner wall adopts mechanical polishing, the outer wall adopts 304 all-welded structure insulation, and the outer surface adopts mirror or matte treatment.

Jacket form: full jacket, semi-circular coil jacket, honeycomb jacket.

Insulation material: filled with pearl cotton, rock wool or polyurethane foam.

Mixing device: the top of the (partial) heart stirring or side stirring; stirring paddle form: box, anchor, propulsion,paddle, turbine and so on.

Stirring speed: 10  120r / min (fixed speed) or configuration stepless speed regulation and frequency control.

Level gauge form: wide strip of tempered glass and so on.

Equipment configuration: quick open manhole, sight glass, depending on light, thermometer (digital or dial type), sampling port, air respirator, CIP cleaner, feed import and export, spare mouth, hot and cold media import and export Wait.

container sterilization method: can be steam sterilization (121℃).

The entrance and exit of the nozzle, mirrors, manholes and other processes and the opening of the tank can be used in the edge of the transition process, smooth easy to clean no dead ends, beautiful appearance; and according to the requirements of the shell to do drip edge design.

Other non-standard features can be customized according to customer needs.

Volume: 50L-20000L series specifications.
